Minimum Spanning Tree

Minimum Spanning Tree (MST)

A spanning tree is defined as a tree-like subgraph of a connected, undirected graph that includes all the vertices of the graph. Or, to say in Layman’s words, it is a subset of the edges of the graph that forms a tree (acyclic) where every node of the graph is a part of the tree.

The minimum spanning tree has all the properties of a spanning tree, with an added constraint of having the minimum possible weights among all possible spanning trees. Like a spanning tree, there can also be many possible MSTs for a graph.

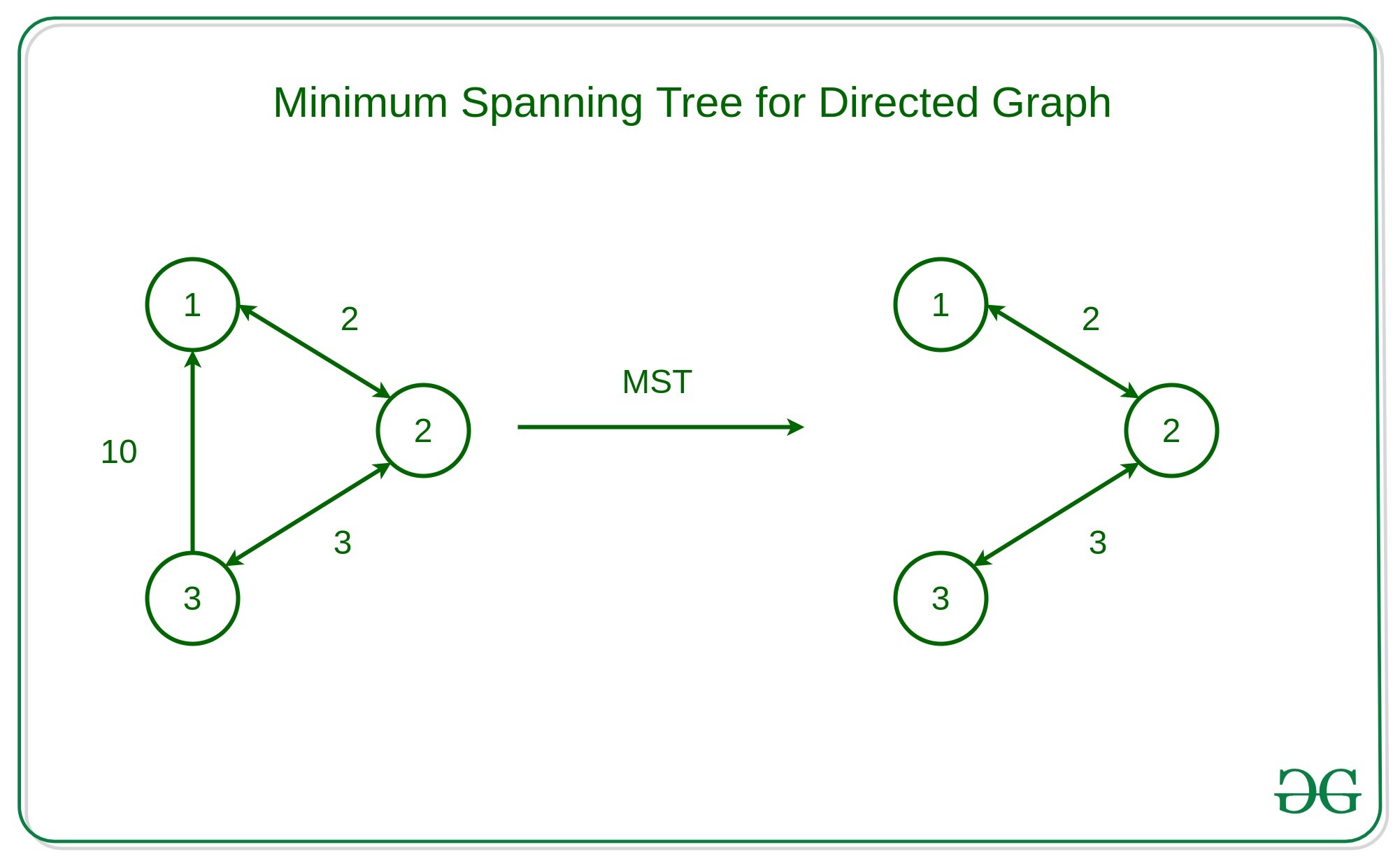

Minimum Spanning Tree (MST)

Above texts are taken from Geek for geeks

Now, let's dive deeper with two different algorithms for getting your MST 🙃.

Kruskals

Disjoint Set

Before kruskals let's consider disjoint sets. More information is available here,

Introduction to Disjoint Set Data Structure or Union-Find Algorithm - GeeksforGeeksGeeksforGeeks

Disjoint sets

Here, we are separating each set from other by setting a root for a certain part.

#include <bits/stdc++.h>
using namespace std;

int parent[INT_MAX];

void makeSet(int n) {
  for (int i = 0; i <= n; i++)
    parent[i] = i;
}

int find(int n) {
  if (parent[n] == n) return n;
  int result = find(parent[n]);
  parent[n] = result;
  return result;
}

void unite(int i, int j) {
  parent[find(i)] = find(j);
}

int main() {
  makeSet(1e6);
  unite(1024, 2048);
  unite(2048, 4096);
  cout << find(1024) << endl;
  cout << find(2048) << endl;
  cout << find(4096) << endl;
  return 0;
}

Actual kruskal

If you have the disjoint, you can sort your data and use the set to do the MST!

#include <bits/stdc++.h>
using namespace std;

vector<pair<int, pair<int, int>>> edges;
int parent[INT_MAX];

void makeSet(int n) {
  for (int i = 0; i <= n; i++)
    parent[i] = i;
}

int find(int n) {
  if (parent[n] == n) return n;
  int result = find(parent[n]);
  parent[n] = result;
  return result;
}

void unite(int i, int j) {
  parent[find(i)] = find(j);
}

void addEdges(int i, int j, int k) {
  edges.push_back({k, {i, j}});
}

void kruskal() {
  sort(edges.begin(), edges.end());
  int weight = 0;
  for (auto it: edges) {
    int i = it.second.first;
    int j = it.second.second;
    int k = it.first;
    if (find(i) != find(j)) {
      unite(i, j);
      cout << i << " " << j << " " << k << endl;
      weight += k;
    }
  }
  cout << "Weight: " << weight << endl;
}

int main() {
  makeSet(1e6);

  addEdges(0, 1, 10);
  addEdges(1, 3, 15);
  addEdges(2, 3, 4);
  addEdges(2, 0, 6);
  addEdges(0, 3, 5);
  kruskal();

  return 0;
}

Prim

Adjacency matrix

For prim, you can do with adjacency list without any priority queue,

#include<bits/stdc++.h>
using namespace std;

vector<vector<int>> graph;
int V = 5;
void printMST(vector<int> &parent);

int minimum(vector<int> &key, vector<bool> &visited) {
  int minimum = INT_MAX, min_index;
  for (int i=0; i<V; i++) {
    if (visited[i] == false && key[i] < minimum) {
      minimum = key[i];
      min_index = i;
    }
  }
  return min_index;
}

void prim() {
  vector<int> key(V, INT_MAX);
  vector<bool> visited(V, false);
  vector<int> parent(V);

  key[0] = 0;
  parent[0] = -1;

  for (int i=0; i < V-1; i++) {
    int u = minimum(key, visited);
    visited[u] = true;

    for (int v=0; v<V; v++) {
      if (graph[u][v] && visited[v] == false && graph[u][v] < key[v]) {
        parent[v] = u;
        key[v] = graph[u][v];
      }
    }
  }

  printMST(parent);
}

void printMST(vector<int> &parent) {
  cout << "Edge \tWeight\n";
  for (int i=1; i<V; i++) {
    cout << parent[i] << " - " << i << " \t" << graph[i][parent[i]] << endl;
  }
}



int main() {
  graph = { { 0, 2, 0, 6, 0 },
            { 2, 0, 3, 8, 5 },
            { 0, 3, 0, 0, 7 },
            { 6, 8, 0, 0, 9 },
            { 0, 5, 7, 9, 0 } };
  prim();
}

Priority Queue

But the more efficient way is to go ahead and use priority queue!

#include<bits/stdc++.h>
using namespace std;

// Function to find sum of weights of edges of the Minimum Spanning Tree.
int spanningTree(int V, int E, vector<vector<int>> &edges) {

    // Create an adjacency list representation of the graph
    vector<vector<int>> adj[V];

    // Fill the adjacency list with edges and their weights
    for (int i = 0; i < E; i++) {
        int u = edges[i][0];
        int v = edges[i][1];
        int wt = edges[i][2];
        adj[u].push_back({v, wt});
        adj[v].push_back({u, wt});
    }

    // Create a priority queue to store edges with their weights
    priority_queue<pair<int,int>, vector<pair<int,int>>, greater<pair<int,int>>> pq;

    // Create a visited array to keep track of visited vertices
    vector<bool> visited(V, false);

    // Variable to store the result (sum of edge weights)
    int res = 0;

    // Start with vertex 0
    pq.push({0, 0});

    // Perform Prim's algorithm to find the Minimum Spanning Tree
    while(!pq.empty()){
        auto p = pq.top();
        pq.pop();

        int wt = p.first;  // Weight of the edge
        int u = p.second;  // Vertex connected to the edge

        if(visited[u] == true){
            continue;  // Skip if the vertex is already visited
        }

        res += wt;  // Add the edge weight to the result
        visited[u] = true;  // Mark the vertex as visited

        // Explore the adjacent vertices
        for(auto v : adj[u]){
            // v[0] represents the vertex and v[1] represents the edge weight
            if(visited[v[0]] == false){
                pq.push({v[1], v[0]});  // Add the adjacent edge to the priority queue
            }
        }
    }

    return res;  // Return the sum of edge weights of the Minimum Spanning Tree
}

int main() {
    vector<vector<int>> graph = {{0, 1, 5},
                                  {1, 2, 3},
                                  {0, 2, 1}};

    cout << spanningTree(3, 3, graph) << endl;

    return 0;
}

Above code is directly taken from Geek for Geeks.

• https://www.geeksforgeeks.org/prims-minimum-spanning-tree-mst-greedy-algo-5/
